24 Fibers Singlemode 9/125 Tight Buffered Distribution GJFJV OS2 Fiber Cable

Name: 24 Fibers Singlemode 9125 Tight Buffered Distribution GJFJV OS2 Fiber Cable
Brand: Weiroct
Price: 1 USD

Brand Name : Weiroct

Model Number : GJFJV-B-001

Certification : ISO-9001

Place of Origin : China

MOQ : 1KM

Price : USD

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000 Kilometre / Month

Delivery Time : 5~20 DAYS

Packaging Details : 2KM/Roll/Carton Box

Product Name : 12 Core optical fiber cable

Model : Simplex

Jacket Material : LSZH/PU/PVC

Cable Type : Tight Buffer Biber With Aramid Yarn

Fire Retardant : Yes

OEM : Available

Application : Patchcord, Pigtail

Contact Now

24 Fibers Singlemode 9/125 OS2 Tight-Buffered Distribution Indoor GJFJV Optical Fibre Cable

Description:

GJFJV indoor fiber optic cable is made by evenly applying strands of Aramid yarns as the strength member over 900μm or 600μm tight buffer fibers and then is completed with PVC(LSZH)jacket.

Standards:

Cable complies with Standard YD/T 769-2003.
Storage/Operating Temperature: -40°C to + 70°C

Products Features:

Good uniformity of the outer diameter of tight buffer fiber and excellent strippability.
Good performance of flame-retardant
Steady performance both in extremely high and low temperature.
Excellent geometrical dimension of the fiber.

Optical Characteristics:

		G.652D	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm		≤3.0 dB/km	≤3.0 dB/km
	@1300nm		≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km
	@1550nm	≤0.22 dB/km
Bandwidth (Class A)	@850nm		≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm		≥1000 MHz·km	≥600 MHz·km
Numerical Aperture			0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm

Cable diameter:

	MPC-02	MPC-04	MPC-06	MPC-08	MPC-10	MPC-12
Cable Diameter(mm)	4.1±0.25	4.8±0.25	5.1±0.25	6.2±0.25	6.5±0.25	6.8±0.25
Cable Weight(kg/km)	12	20	24	29	32	35
Tight Buffer Fiber Diameter	900±50μm

Mechanical Characteristics:

Tensile Strength	Long Term	80N	60	50
Tensile Strength	Short Term	150N	120	100
Crush Resistance	Long Term	100N/100mm	100N/100mm	100N/100mm
Crush Resistance	Short Term	500N/100mm	500N/100mm	500N/100mm
Bending Radius	Dynamic	20XD	20XD	20XD
Bending Radius	Static	10XD	10XD	10XD

Product Tags:

24 Fibers Singlemode Optic Cable

Singlemode OS2 Fiber Cable

GJFJV OS2 Fiber Cable

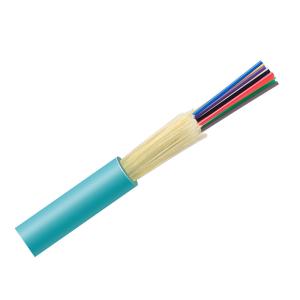

24 Fibers Singlemode 9/125 Tight Buffered Distribution GJFJV OS2 Fiber Cable Images
