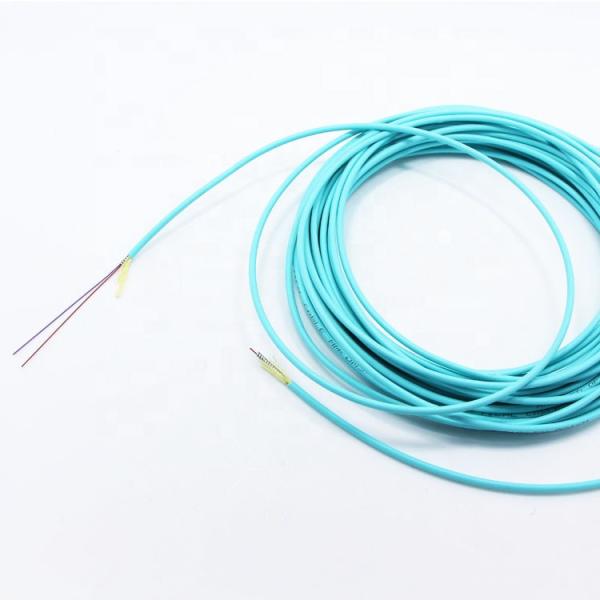

Dual Fiber Steel Tube Aqua Duplex Armored OM3 Indoor Fiber Optic Cable

Name: Dual Fiber Steel Tube Aqua Duplex Armored OM3 Indoor Fiber Optic Cable
Brand: Weiroct
Price: 1 USD

Brand Name : Weiroct

Model Number : GJPFJH

Certification : ISO-9001

Place of Origin : China

MOQ : 1KM

Price : USD

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000 Kilometre / Month

Delivery Time : 5~20 DAYS

Packaging Details : 2KM/Roll/Carton Box

Conductors : 2

Jacket Color : Aqua

Type : Single mode

Fiber Type : OM3

Application : Telecommunication

Strength Member : Aramid Yarn

Fiber Count : 2 core

Product Name : Indoor Fiber Optic Cable

Operating Temperature : -20℃~+70℃

Usage : Patchcord, pigtail

Contact Now

Dual Fiber Steel Tube Indoor Duplex Armored OM3 Fiber Optic Cable Aqua Color

Product Description:

The armored cable is a special cable with a stainless steel tube inside the cable which could protect the fiber bite by ant, mouse related rodent animals. This cable could be used as normal electric wire.

Characteristics:

Select quality fiber to ensure excellent transmission performance.

Adopt strict process and raw materials control to guarantee the lifespan of 15 years.

Good uniformity of the diameter of buffer fiber and excellent strip ability.

Good performance of flame-retardant. Small bending radius.

Excellent mechanical and environmental performance.

Colored bare fiber is available.

Application:

Indoor Horizontal and Vertical Wiring

Pigtail of Communication Equipment and Flexible Connection

Fiber Optical Movable Connector

Technical data:

Fiber Type	G652D,G655,G656,G657,OM1,OM2,OM3,OM4
Buffered type	Tight buffer, Semi-tight buffer, Loose buffer
Coat Material	PVC, OFNR,OFNP,LSZH,LSOH,NYLON
OD(um)	600,900
Min Bending Radius	Dynamic 20D; Static 10D(expect G657)
Coating color	12 colors available, Both 250um and 900um same colored
Temperature range	PVC: -20°C ~+90°C ;LSZH:-20°C ~+70°C

Specification:

Cable Code	Fiber Count	Cable Size (mm)	Cable Weight (kg/km)	Mini.Bending Radius (mm)		Tensile Strength (N)		Crush Resistance (N/100mm)		Range of Temperature (℃)
Cable Code	Fiber Count	Cable Size (mm)	Cable Weight (kg/km)	Dynamic	Static	Short Term	Long Term	Short Term	Long Term	Range of Temperature (℃)
SXC16	1	1.6	2.9	60	30	60	30	500	100	—20~+60
SXC18	1	1.8	3.2	60	30	80	40	500	100
SXC20	1	2.0	3.5	60	30	100	60	500	100
SXC24	1	2.4	5.0	60	30	100	60	500	100
SXC28	1	2.8	5.8	60	30	150	80	500	100
SXC30	1	3.0	6.8	60	30	150	80	500	100

Fiber Type		G652D	50/125	62.5/125	G657A1	G657A2	OM3-150	OM3-300	OM4
Jacket Material		PVC		LSZH			TPU
