GJYXCH GJYXFCH GJYXFCH GJXH G657A1 G657A2 G652D FTTH Fiber Optic Drop Cable

Product Categories
Wuhan Weiruo Communication Tech. Co.,Ltd
Contact Now

GJYXCH GJYXFCH GJYXFCH GJXH G657A1 G657A2 G652D FTTH Fiber Optic Drop Cable

Brand Name : Weiro

Model Number : GJFJBV,GJXH

Certification : ISO9001

Place of Origin : China

MOQ : 1KM

Price : USD0.50-USD15/Km

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000 Kilometre / Month

Delivery Time : 5~20 DAYS

Packaging Details : 2KM/Roll/Carton Box

Jacket : LSZH/PVC/HDPE

Outer Sheath Color : Orange

Fiber Type : OM3

Application : Telecommunication

Strength Member : Aramid Yarn/Metal wire

Core : 4/6/8/12

Product Name : 1-12core GJYXCH GJYXFCH GJYXFCH GJXH G657A1/G657A2/G652D FTTH indoor outdoor fiber optic drop cable

Contact Now

1-12core GJYXCH GJYXFCH GJYXFCH GJXH G657A1/G657A2/G652D FTTH indoor outdoor fiber optic drop cable

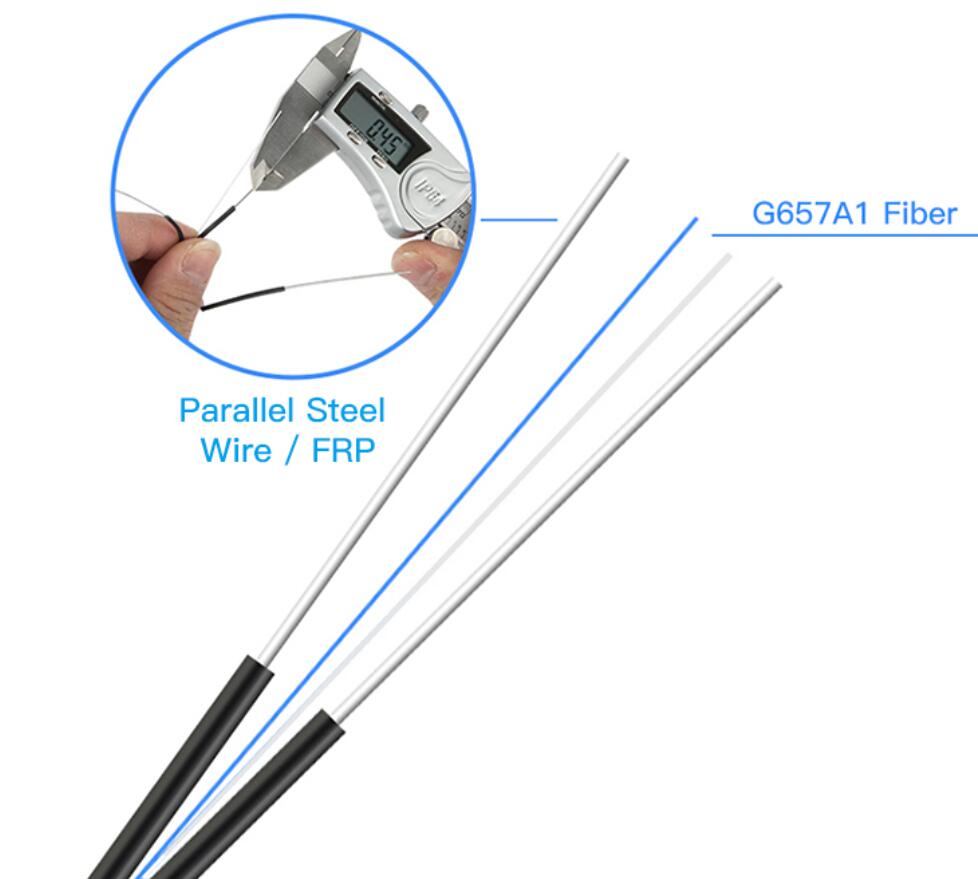

1. High quality Bend-insensitive fiber, Reinforced FRP or Steel Wire strength member, Fire-resistant LSZH material cable sheath

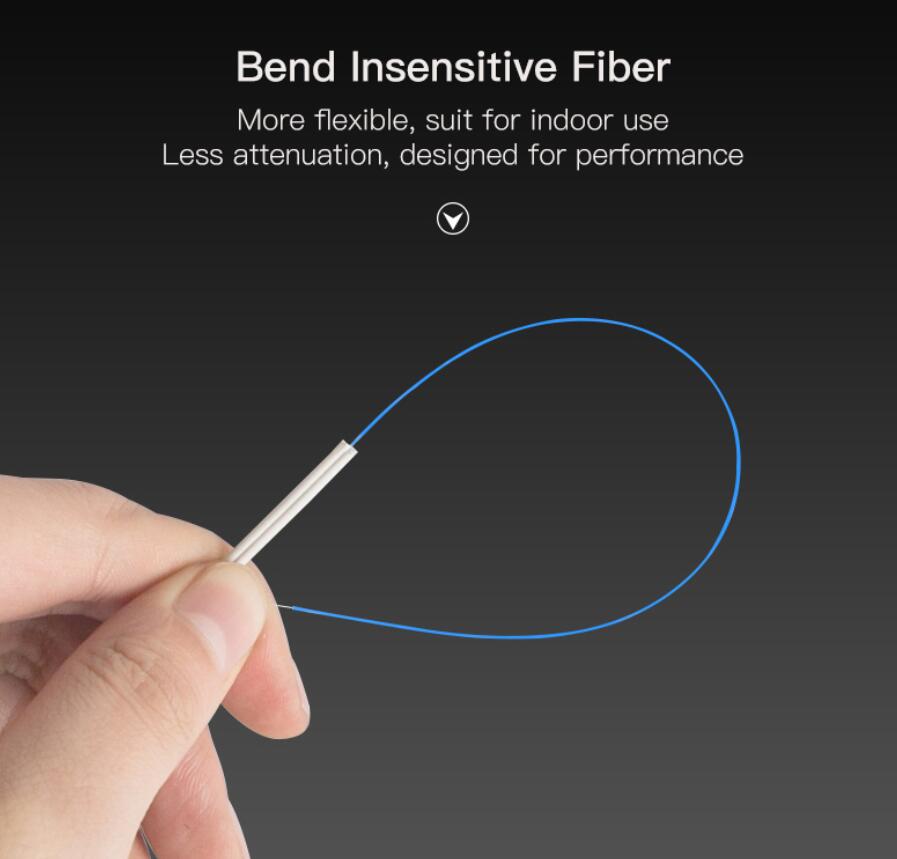

2. Bend-insensitive single mode fiber, ITU. G.657A fiber, Standard fiber length 24km/roll and 48km/roll.

3. High quality LSZH material cable cheath, very smooth surface, anti-UV, flame-retsistant

4. High tensile single wire steel, 1.0mm and 1.2mm for choice

5. galvanized steel swire stranded, higher tensile, flexible

Cable Diameter (mm)
Indoor FTTH Drop Cable
Outdoor FTTH Drop Cable
Insertion Loss(dB)
≤0.2
Return Loss (dB)
≥50
≥60
Cable Diameter (mm)
2.0mm, 3.0mm
Durability(dB)
1000matings, <0.3
Interchangeability (dB)
<0.2
Operating temperature(℃)
-40~+85
Technical data:
strength member
material
Galvanized steel wire/FRP/KFRP
diameter
2*(0.5~0.8)mm
Self support Messenger wire
material
Galvanized steel wire
diameter
1.0mm
Outer sheath
material
LSZH
diameter
1.8±0.2mm
Cable size (Height * width)
2.0(±0.1) mm × 5.2(±0.2)mm
Cable sheath thickness
Max. 0.8mm/Min. 0.4mm
Messenger sheath thickness
0.5~0.7mm
Cable weight
1~2core
18.2KG
4-6 core
18.5KG
8~24core
54KG
GJYXCH GJYXFCH GJYXFCH GJXH G657A1 G657A2 G652D FTTH Fiber Optic Drop Cable
GJYXCH GJYXFCH GJYXFCH GJXH G657A1 G657A2 G652D FTTH Fiber Optic Drop Cable
GJYXCH GJYXFCH GJYXFCH GJXH G657A1 G657A2 G652D FTTH Fiber Optic Drop Cable
GJYXCH GJYXFCH GJYXFCH GJXH G657A1 G657A2 G652D FTTH Fiber Optic Drop Cable
GJYXCH GJYXFCH GJYXFCH GJXH G657A1 G657A2 G652D FTTH Fiber Optic Drop Cable
GJYXCH GJYXFCH GJYXFCH GJXH G657A1 G657A2 G652D FTTH Fiber Optic Drop Cable
GJYXCH GJYXFCH GJYXFCH GJXH G657A1 G657A2 G652D FTTH Fiber Optic Drop Cable
FAQ
Q1: Are you manufacturer?
A: Yes, we are the manufacturer since the year 2002.

Q2: What's delivery time?
A: Mass production time needs 1-2 week.

Q3: What’s your payment terms?
A: T/T, L/C.

Q4: What kind of cable do you produce?
A: We’re specialized in manufacturing Coaxial Cable, such as RG Series and Trunk Cable, Optical Fiber Cable, such as ADSS and FTTH, and Lan Cable, such as CAT5E, CAT6 and CAT7.

Q5: What’s your annual capability?
A: We are specialized in manufacturing coaxial cable, optical fiber cable and Lan Cable, whose annual output reaches to 350,000 kilometers, 2 million kilometers’ core and 600,000 boxes separately.

Q6: Do you have OEM and ODM?
A: Yes, we could provide professional suggestions and best solutions to your requirements.

Q9: May I get free sample?
A: Normally, our samples for charger are free. If the sample quantity is large, it will be charged. However, the sample fee will be refunded when customer place bulk orders for that item.

Q10: What's your trade term ?
A: We can accept FOB, CIF, CFR, EXW, etc.
