Outdoor Armoured Optic Fiber Cable GYTA Duct Buried 24 32 48 84 96 144 288 Cores

Brand Name : Wrc

Model Number : GYTA

Certification : ISO9001,SGS

Place of Origin : China

MOQ : 5.0km

Price : USD60-USD350/Km

Payment Terms : Western Union, MoneyGram, D/P, T/T, L/C

Supply Ability : 500Km per day

Delivery Time : 5-21 days

Packaging Details : Export Carton Packing

Application : Telecommunication,Telecom,Network,internet,Lan

Fiber type : G652D,single mode or multi mode,50/125,62.5/125,OM3

Number of conductors : 2,4,8,12,24,48,96

Type : Single Mode g652d,Outdoor Optical Cable Aerial,Singlemode & Multimode

Color : Black,Blue,Grey,Customized,Green

Jacket : PE,MDPE,LSZH,PVC

Length : 2km , or customized length

Jacket material : PE,LSZH,TPU,LSZH OR PVC

Oem : Available

Installation : self- supporting Aerial,aerial, Duct

Structure : Loose tube,Unitube

Operating temperature : -40~75

Sheath material : LSZH,HDPE,PVC

Strength member : steel wire,Aluminum,or as per requirement

Fiber color : Blue,Orange,Brown,Aqua,Grey,Customized

Contact Now

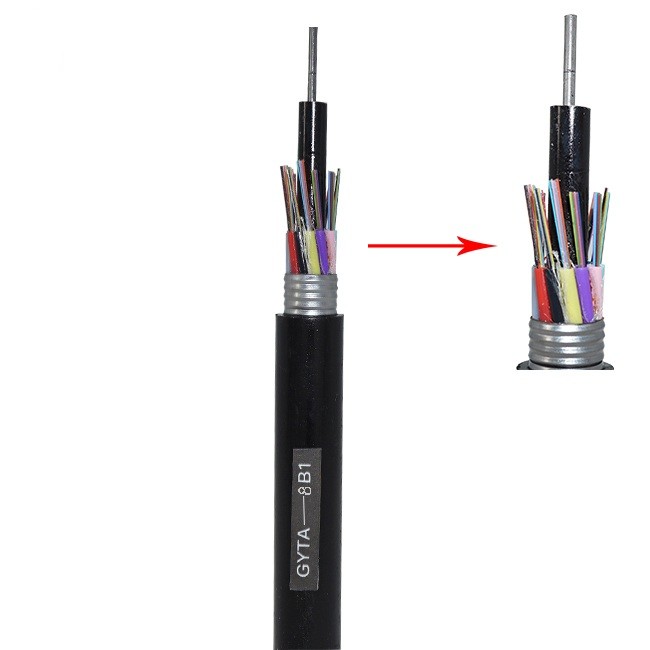

outdoor 24 32 48 84 96 144 288 cores Armoured Optic Fiber Cable GYTA duct buried Cable

Description:

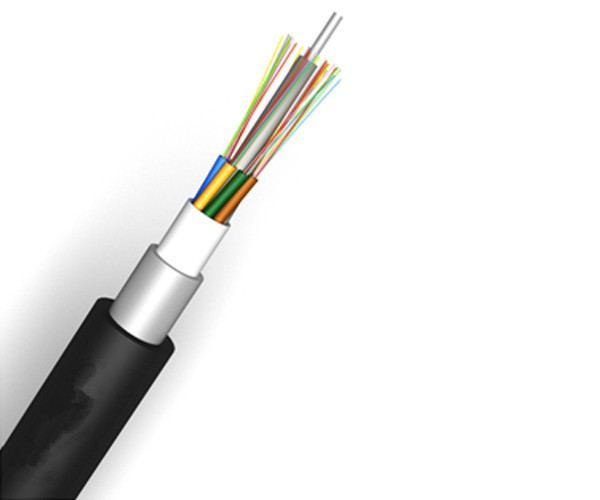

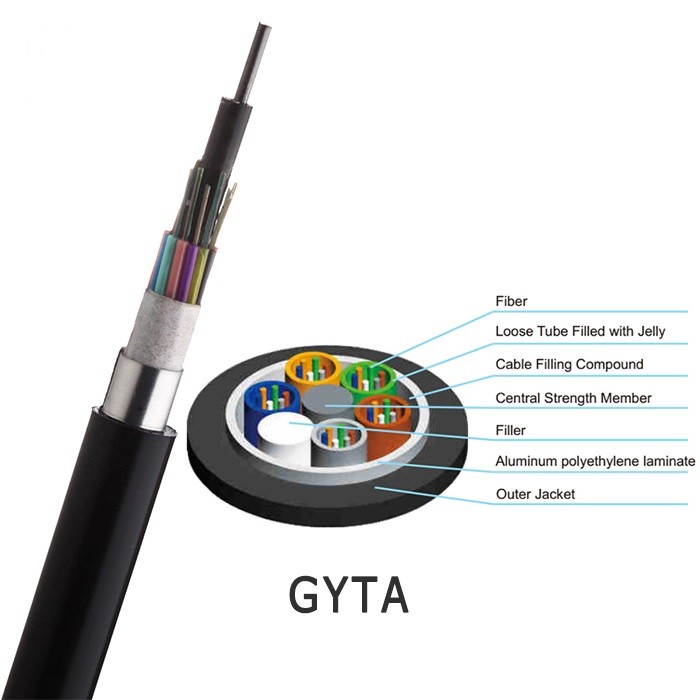

GYTA single-armored cables feature stranded loose tube filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then, the cable is completed with a PE sheath. It‘s suitable for installation for long haul communication and LANs, especially suitable for the situation of high requirements of moisture resistance.

Feature:
♦ Excellent mechanical and temperature performance
♦ Special tube filling compound ensure a critical protection of fiber and resist the water.
♦ Single steel wire as the central strength member to withstand axial loads.
♦ PE sheath protects cable from ultraviolet radiation.
♦ 100% core filling water prevent cable jelly to ensure the cable watertight.
♦ AL tape longitudinal cover cable core as moisture barrier.

Characteristics:

· Has good mechanical and temperature properties.

· The loose tube material itself has good hydrolysis resistance and high strength.

· The tube is filled with a special grease to provide critical protection to the fiber, good pressure resistance and softness.

· Double coated steel strip (PSP) improves the moisture resistance of the cable.

· Two parallel wires ensure the tensile strength of the cable.

· Small diameter, light weight and easy to lay.

· Long delivery length

Structure and Technical specifications of GYTA 53 single mode GYTA GYTS 24 core fiber optical optic cable

G.652D Single Mode Optical Fiber (B1.3)
Item		Standard	Unit
Attenuation	1310nm	≤0.35	dB/km
	1383nm	≤0.33	dB/km
	1550nm	≤0.21	dB/km
	1625nm	≤0.24	dB/km
Dispersion	1288nm～1339nm	\|D\|≤3.4	ps/(nm·km)
	1271nm～1360nm	\|D\|≤5.3	ps/(nm·km)
	1550nm	≤17.8	ps/(nm·km)
Zero-dispersion wavelength		1300～1322	(nm)
Zero-dispersion slope		≤0.091	ps/(nm2•km)
PMD	PMD single fiber	≤0.15	ps/√km
PMD	PMD Q links	≤0.08	ps/√km
MDF	1310nm	9.2±0.4	um
Cladding diameter		125±1.0	μm
Cladding non-circularity		≤0.8	%
Core-cladding concentricity error		≤0.6	μm
Coating diameter		245±10	μm
Cladding/coating concentricity error		≤10.0	μm
Cut-off wavelength		1.18～1.33	μm
Macrobend attenuation (ф 50mm, 100 cycles)	1550nm	≤0.05	dB
Macrobend attenuation (ф 50mm, 100 cycles)	1625nm	≤0.05	dB
Bending radius		≥5	m
Dynamic fatigue parameters		≥20	nd
Additional Attenuation @1310nm & @1550nm	Temperature cycling test: (-60℃～85℃, 3 cycles)	≤0.03	dB/km
	Water soak test: (23℃ for 30 days)	≤0.03	dB/km
	Damp heat test: (85℃, 85%RH for 30 days)	≤0.03	dB/km
	Thermal aging test (85℃ for 30 days)	≤0.03	dB/km
	Warm water soak test: (60℃ for 15 days)	≤0.03	dB/km

We produce cables according to the standard as below of GYTA 53 single mode GYTA GYTS 24 core fiber optical optic cable

Mechanical Performance
Max Tension Performance	IEC 60794–1-2-E
Max. Operation Tension	IEC 60794–1-2-E1
Crush Test	IEC 6079 –1-2-E3
Impact Test	IEC 60794–1-2-E4
Repeated Bending	IEC 60794–1-2-E6
Torsion Test	IEC 60794–1-2-E7
Cable bend	IEC 60794–1-2-E11A
Attenuation Coefficient	ITU-T G.652
Structural Test	IEC-60793-1-20
Environmental Performance
Temperature Cycling	IEC 60794–1-2-F1
Water Penetration	IEC 60794–1–2-F5B
Filing Compound Flow	IEC 60794-1-E14

Category	Description		Specifications
			G.652D
Optical Specifications	Attenuation	@1310nm	≤0.35dB/km
		@1383nm	≤0.35dB/km
		@1550nm	≤0.22dB/km
		@1625nm	≤0.30dB/km
	Attenuation discontinuity		≤0.05 dB
	Attenuation vs. Wavelength	1285~1330@1310nm	≤0.05 dB/km
		1525~1575@1550nm	≤0.05 dB/km
	Zero Dispersion Wavelength		1300~1324nm
	Zero Dispersion Slope		≤0.092ps/(nm2.km)
	Dispersion	@1310nm	≤3.5 ps/nm.km
		@1550nm	≤18 ps/nm.km
	Polarization Mode Dispersion(PMD)		≤0.2ps/km1/2
	Cable Cutoff Wavelength(λcc)		≤1260nm
	Effective Group Index of Refraction	@1310nm	1.4675
		@1550nm	1.4681
Geometric Specifications	Mode Field Diameter	@1310nm	9.2±0.6μm
		@1550nm	10.4±0.8μm
	Cladding Diameter		125±1μm
	Cladding Non-Circularity		≤1.0%
	Coating Diameter		245±7μm
	Coating/Cladding Concentricity Error		≤8μm
	Core/Cladding Concentricity Error		≤0.8μm
Mechanical Specifications	Proof Test level		≥1.0%
	Fiber Curl Radius		≥4.0m
	Peak Coating Strip Force		1.3~8.9N

Outdoor Armoured Optic Fiber Cable GYTA Duct Buried 24 32 48 84 96 144 288 Cores
