GJFJH 10.5mm 24pcs Single Mode Optical Fiber For Premises Distribution System

Product Categories
Wuhan Weiruo Communication Tech. Co.,Ltd
Contact Now

GJFJH 10.5mm 24pcs Single Mode Optical Fiber For Premises Distribution System

  • 1
  • 2
  • 3

Brand Name : Weiroct

Model Number : GJFJH

Certification : ISO-9001

Place of Origin : Hubei, China

MOQ : 1KM

Price : USD

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000 Kilometre / Month

Delivery Time : 5~20 DAYS

Packaging Details : 2KM/Roll/Carton Box

Single-mode Fiber : G657A1/ G657A2

Jacket Color : Yellow

Fiber Count : 24 Cores

FRP : 0.5mm

Jacket : LSZH

Tight Buffer : 24pcs

Aramid Yarn : 16 Standard Yarn

OD : 10-10.5mm

Application : Indoor

Fiber Type : OM1

Contact Now

Indoor optic cable GJFJH 12 24core single mode G652D G657A fiber optic cable

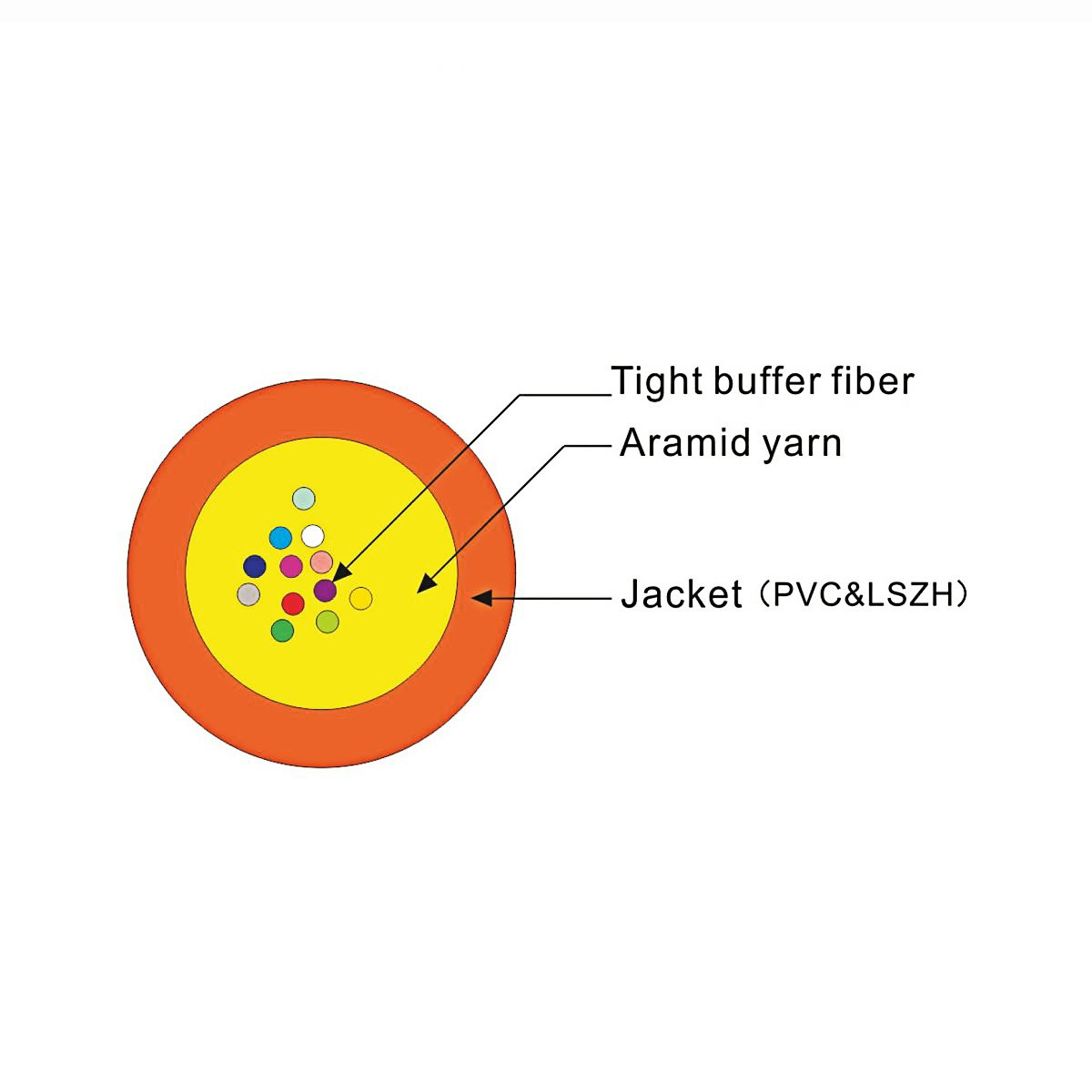

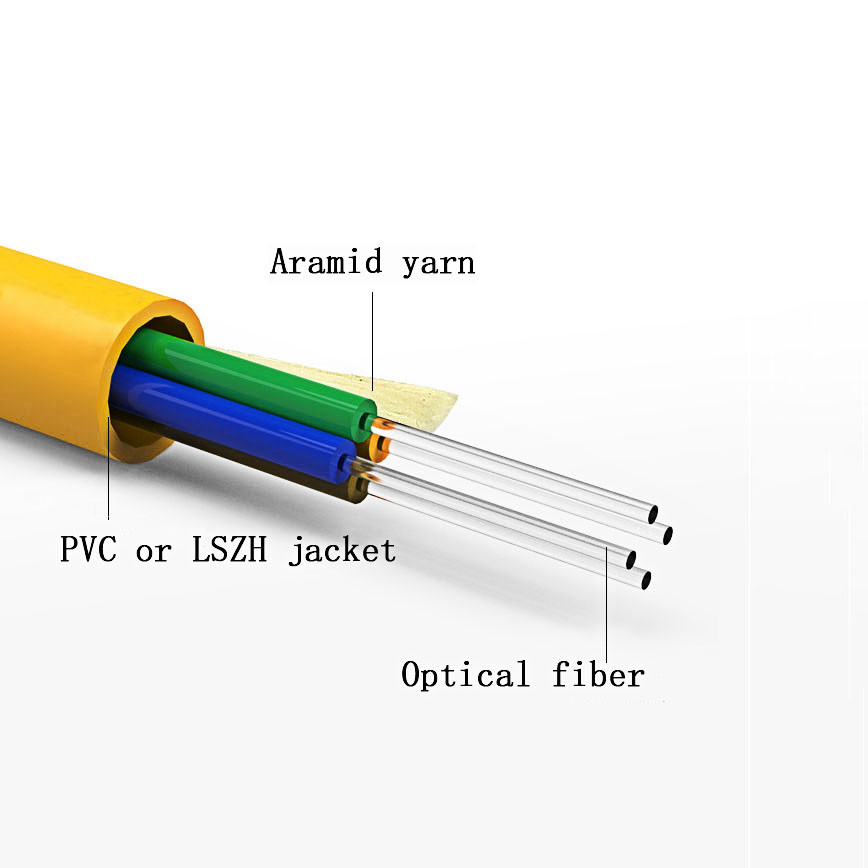

Product Construction


Fiber:


250µm color fibers


Strength Member:


Aramid Yarn


Outer Jacket:


Thermoplastic urethane or UV and Flame resistant LSZH jacket


Features

Good mechanical and environmental characteristics.

Excellent abrasion resistance and cold temperature workability.

Solf, flexible, easy to lay and splice, and with big capacity transmission.

Applications

Used in access network oras access cable from outdoorto indoor in customer premises network.
Used as access building cable in premises distribution system.

Optical Characteristics
Fiber Type Attenuation Overfilled launch Bandwidth Effective Modal Bandwidth 10GB/S Ethernet link length Min Bending Radius
Conditions 1310/1550nm 850/1300nm 850/1300nm 850nm 850nm
Unit dB/km dB/km MHZ.km MHZ.km m mm
G652D 0.36/0.22 16
G657A1 0.36/0.22 10
G657A2 0.36/0.22 7.5
50/125 3.0/1.0 ≥500/500 30
62.2/125 3.0/1.0 ≥200/500 30
OM3 3.0/1.0 ≥1500/500 ≥2000 ≥300 30
OM4 3.0/1.0 ≥3500/500 ≥4700 ≥550 30
B1-OM3 3.0/1.0 ≥1500/500 ≥2000 ≥300 7.5
B1-OM4 3.0/1.0 ≥3500/500 ≥4700 ≥550 7.5

Structure and Technical Specfications GJFJH(LSZH)

Cable Count

Cable Diameter

(mm)

Cable Weight

(kg/km)

Tensile Strength

(N/100mm)

 Crush Resistance (N/100mm)
LSZH jacket Short Term Long Term Short Term Long Term
1-2 3.0 12 1000 400 2200 1000
4-12 3.5 15 1000 400 2200 1000
12-24 4.2 20 1000 400 2200 1000

Fiber Count
Outside OD(mm)
Tight Buffer OD(mm)
Weightkg/km
Tensile Strength(N)
Crush Resistance(N/100mm)
Bending Radius(mm)
2
3
0.9
15
600
200
1000
200
20D
10D
4
5
0.9
22
600
200
1000
200
20D
10D
6
5
0.9
23
600
200
1000
200
20D
10D
8
5.5
0.9
28
600
200
1000
200
20D
10D
12
6
0.9
38
600
200
1000
200
20D
10D
16
7.2
0.9
42
600
200
1000
200
20D
10D
24
8.3
0.9
58
600
200
1000
200
20D
10D
48
10
0.9
96
600
200
1000
200
20D
10D

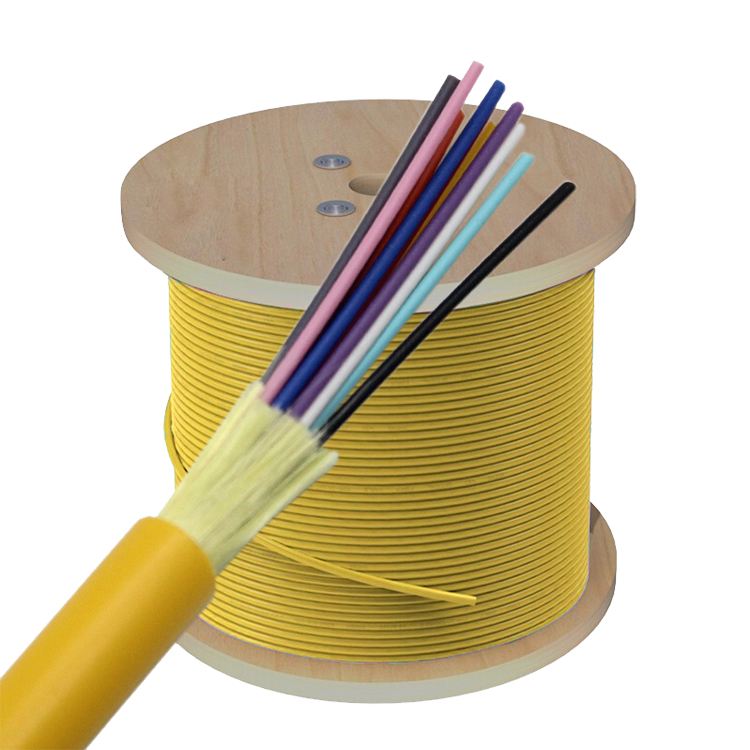

GJFJH 10.5mm 24pcs Single Mode Optical Fiber For Premises Distribution System

GJFJH 10.5mm 24pcs Single Mode Optical Fiber For Premises Distribution SystemGJFJH 10.5mm 24pcs Single Mode Optical Fiber For Premises Distribution SystemGJFJH 10.5mm 24pcs Single Mode Optical Fiber For Premises Distribution System
