GJFJV Simplex Tight Buffer Multimode Fiber Optic Cable 10mm PVC / LSZH Sheath

Wuhan Weiruo Communication Tech. Co.,Ltd
Contact Now

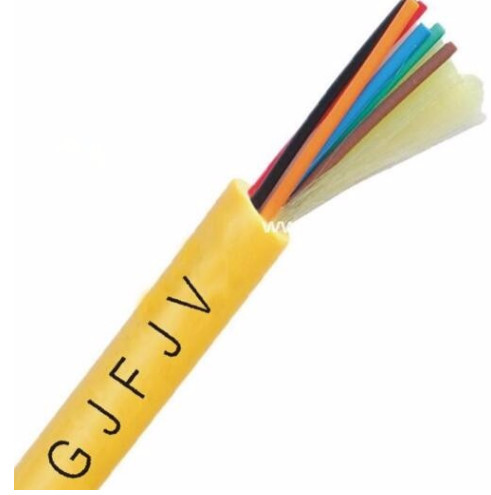

GJFJV Simplex Tight Buffer Multimode Fiber Optic Cable 10mm PVC / LSZH Sheath

  • 1
  • 2
  • 3

Brand Name : Weiroct

Model Number : GJFJV

Certification : ISO-9001

Place of Origin : Hubei, China

MOQ : 1KM

Price : USD

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000 Kilometre / Month

Delivery Time : 5~20 DAYS

Packaging Details : 2KM/Roll/Carton Box

Single-mode Fiber : G657A1/ G657A2

Fiber Count : 24 Cores

FRP : 0.5mm

Insulation Material : PE

Tight Buffer : 6pcs

Aramid Yarn : 12 Standard Yarn

OD : 10-10.5mm

Application : Aerial and Duct

Fiber Type : OM3

Package : 2KM/Roll

Conductors : ≥10

Contact Now

GJFJV Simplex Cable Tight Buffer PVC/LSZH Sheath Singlemode Multimode Fiber Optic Cable

Product Description:

GJFJV Simplex cable use single 900um or 600um tight buffer fiber as optical commucation medium , the tight buffer fiber wrapped
with a layer of aramid yarn as strength member uinits, and the cable is completed with a PVC or LSZH (low
smoke ,Zero halogen,Flame-retardant ) jacket.

Cable Code
Cable Diameter
(mm)
Cable Weight
(kg/km)
TBF Diameter
(μm)

Tensile Strength
(N/100mm)
Crush Resistance
(N/100mm)
PVC jacket
LSZH jacket
Short Term
Long Term
Short Term
Long Term
1.6
1.6±0.2
2.4
2.6
600±50
40
80
500
100
1.9
1.9±0.2
3.5
4.5
900±50
60
100
500
100
2.8
2.8±0.2
6.0
7.5
900±50
60
100
500
100

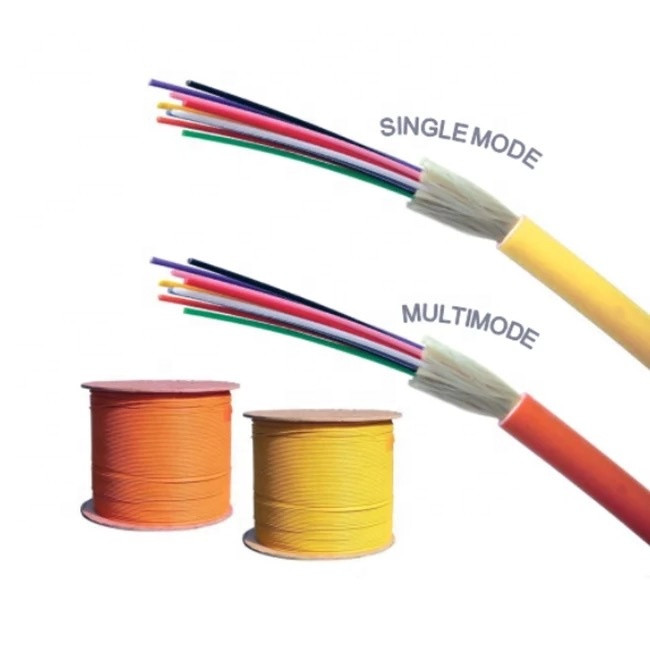

SINGLE MODE GJFJV GJFJH INDOOR DISTRIBUTION FIBER OPTIC CABLE

FIBER CORE:G652D,G657A1,G657A2,G655C,

MULTI MODE GJFJV GJFJH INDOOR DISTRIBUTION OUT FIBER OPTIC CABLE

FIBER CORE:OM1,OM2,OM3,OM4
Product Name
GJFJV Fiber Optic Cable Indoor
Fiber Count
12,24,48,72,92,144 Fibers
Construction
Stranded Loose Tube
Fiber Type
Singlemode G.652D
Outer Jacket Material
PVC or LSZH
Bandwidth
850nm or 1300
Transport Temperature
-20℃~﹢60℃
Operation Temperature
-20℃ to +60℃

Product Application:

With excellent mechanical and temperature resistant performance, all-dielectric cables are designed for outdoor communications ,adopted to various indoor cables and suitable for patch cords and pigtails, for communication equipment served, for standard connector.

GJFJV Simplex Tight Buffer Multimode Fiber Optic Cable 10mm PVC / LSZH SheathGJFJV Simplex Tight Buffer Multimode Fiber Optic Cable 10mm PVC / LSZH SheathGJFJV Simplex Tight Buffer Multimode Fiber Optic Cable 10mm PVC / LSZH Sheath
